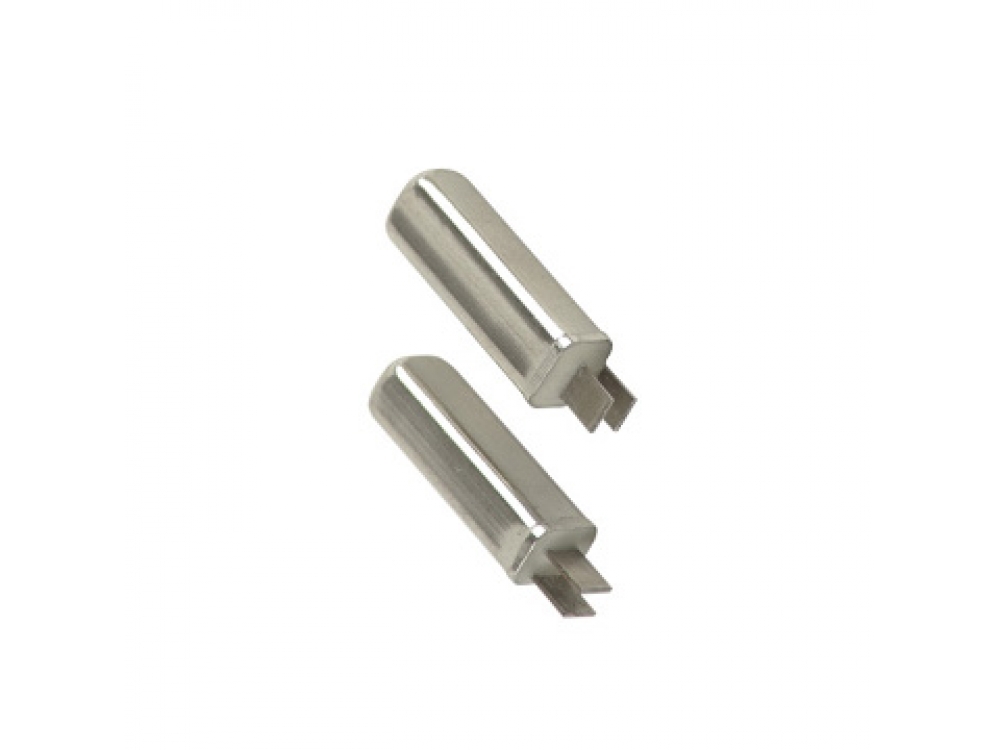

Thermostat JRMD

Type: Creep-action

Rating: Current-6A,10A. Voltage-24VDC, 120VAC

Temperature range: -20°C- 150°C (Standard tolerance: ± 5°C or customized)

Application: Electrical blanket, Heating pad, battery pack of cordless power tool, Personal computer, PCB and low voltage electrical appliance etc.

FEATURES

• Creep-action design.

• Preset calibration temperature, not field adjustable.

• Miniature size.

• Temperature sensitive.

CONTACT RATINGS

• Rated current: 6A,10A.

• Rated voltage: 24VDC, 120VAC

• These ratings are applicable for 100,000 cycles.

• Certifications: UL,TUV.

CALIBRATION TEMPERATURE RANGE

• Available from -20˚C to 150˚C.

• Standard tolerance: +/-5˚C.

• Reset temperature: 2 ˚C less than operating temperature.

APPLICATIONS

Electrical blanket, Heating pad, battery pack of cordless power tool, Personal computer, PCB and low voltage electrical appliance etc.
