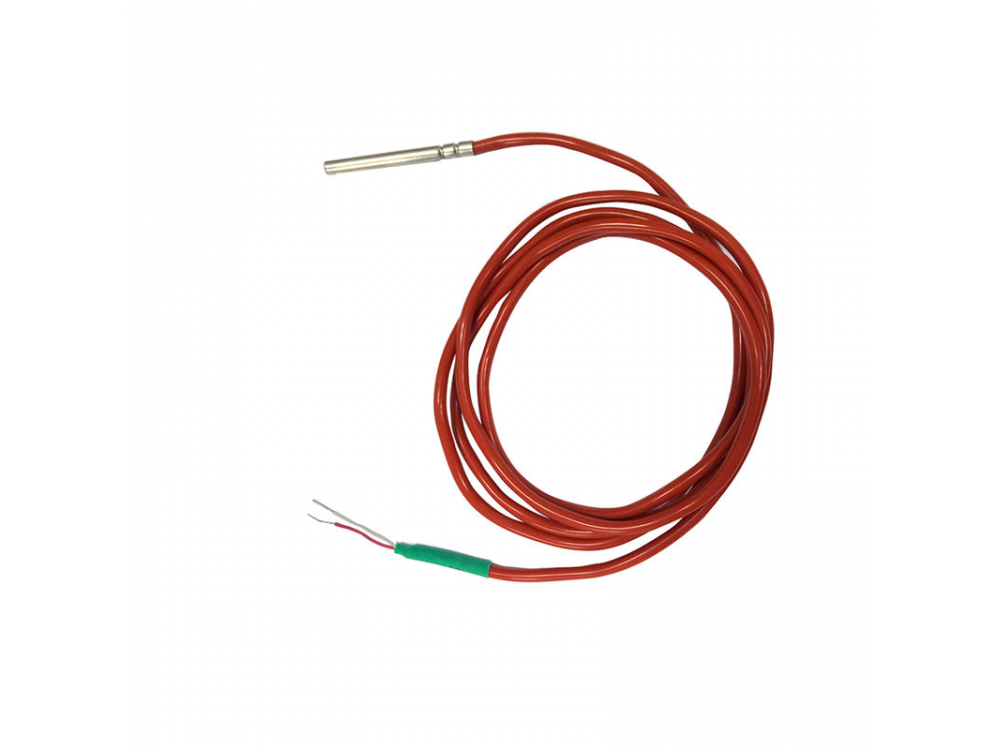

(PT100/PT1000) Platinum Temperature Sensor

The platinum temperature sensor measures range from -50℃ to 150℃ with PT100/PT1000. Insertion length ≥30mm, diameter Φ5mm, connection with 2-wire or 3-wire cable. The temperature sensor is vibration-resistant, applicable to water, liquid and gas.

Enquiry Now

FEATURES

• Vibration-resistant, highly reliable and accurate.

• PT100 (PT1000 optional).

PARAMETERS

Temperature range: -50˚C ~ 150 ˚C

Accuracy (linearity, repeatability and hysteresis): ±0.25%F.S. (Typical)

Resistance value R0 (at 0°C): Class A 100±0.06Ω

Allowable deviation value△ °C: Class A ±(0.15+0.002|t|)

Heat response time: <30S

Minimum insertion length: ≥30mm

Insertion diameter: Φ5mm (or as require)
