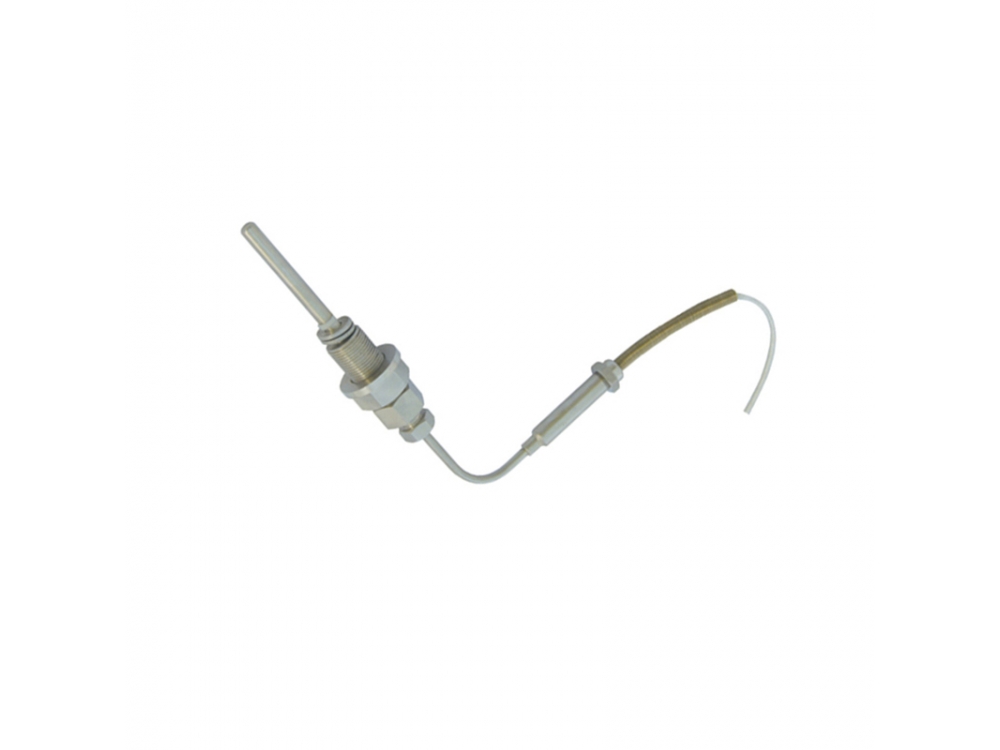

(Natural Gas & Compressor) Platinum Temperature Sensor

• Vibration-resistant, highly reliable and accurate.

• PT100 (PT1000 optional).

Temperature range: -50˚C ~ 250 ˚C

Accuracy (linearity, repeatability and hysteresis): ±0.25%F.S. (Typical)

Resistance value R0 (at 0°C): Class A 100±0.06Ω

Allowable deviation value△ °C: Class A ±(0.15+0.002|t|)

Heat response time: <30S

Minimum insertion length: ≥10mm

Insertion diameter: Φ8mm (or as require)

Insulation: 100MΩ/100VDC

Current: ≤5mA

Protection: IP65

Electrical connection: Cable
