MF58 NTC Thermistor

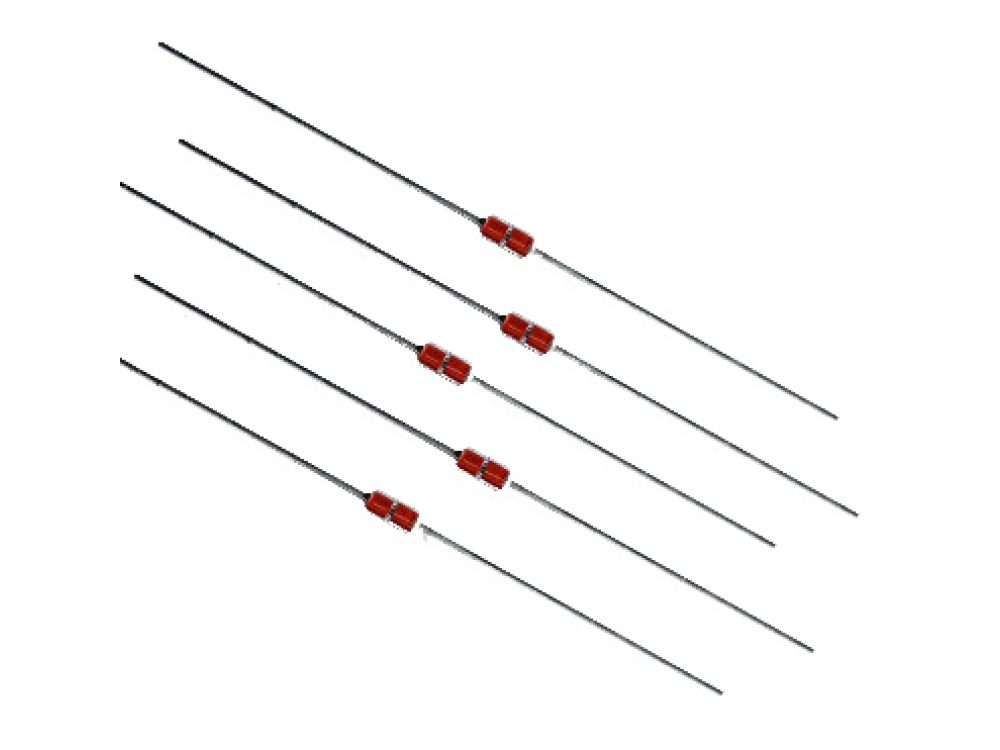

The glass shell precision NTC thermistor MF58 is equipped with tinned axial leads and then wrapped with purified glass. It is highly reliable with wide range of resistance 0.1~3780KΩ and tight tolerance on resistance and Beta values.
FEATURES

• Good stability and repeatability

• High reliability

• Wide range of resistance: 0.1~3780KΩ

• Tight tolerance on resistance and Beta values

• Suitable for high-temperature and high-moisture environments

• Small, light, strong packaging structure

• Suitable for automatic insertion on thru-hole PCBs

• Rapid response

• High sensitivity

PARAMETERS

Zero power resistance range (R25): 0.1~3780KΩ

Available tolerances of R25: ±1%, ±2%, ±3%, ±5%, ±10%

B value (B25/50°C) range: 3100~4500K

Available tolerances of B value: ±0.5%, ±1%

Dissipation factor: ≥2mW/°C (In Still Air)

Thermal time constant: ≤20S (In Still Air)

Operating temperature range: -55°C ~ +250°C

Rated Power: ≤50mW

APPLICATIONS

Temperature compensation and detection for household appliances (air conditioners, microwave ovens, electric fans, electric heaters etc.), office equipment (copiers, printers etc.), industrial/medical/environmental/weather and food processing equipment, mobile phone battery, battery pack, apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples. Liquid level detection and flow rate measurement.


Contact Us for Samples!

E-Mail to: sales@thermpro-tech.com

We are readily to talk with you about your application and needs in thermal or temperature solutions. Samples are available for test as you require.
