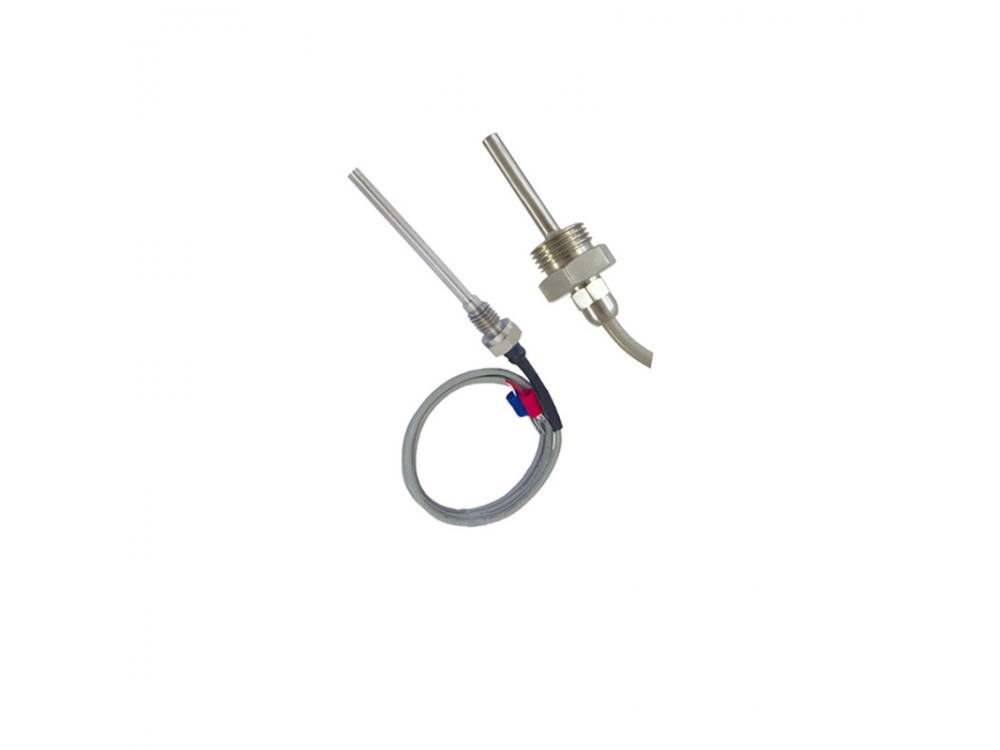

Compressor Temperature Sensor

• Perfect long-term stability.

• High strength.

• Pressure-resistant, vibration-resistant.

• highly reliable and accurate.

• PT100 (PT1000 optional).

Temperature range: -50˚C ~ 150 ˚C

Accuracy (linearity, repeatability and hysteresis): ±0.5%F.S.

Long-term stability: ≤0.2%F.S.

Resistance value R0 (at 0°C): Class A 100±0.06Ω

Allowable deviation value△ °C: Class A ±(0.15+0.002|t|)

Heat response time: <30S

Minimum insertion length: ≥10mm

Insertion diameter: Φ6mm | Φ8mm (for high temperature)

Insulation: 100MΩ/250VDC

Current: ≤5mA

Protection: IP65

Electrical connection: Cable outlet
