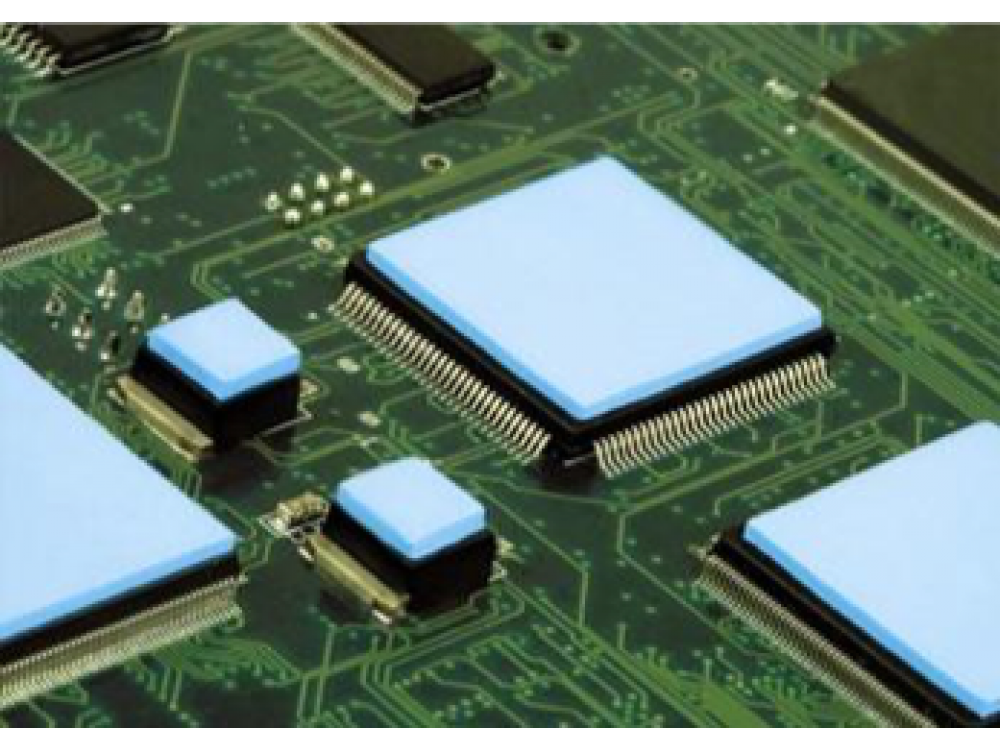

THERMPRO provides thermal interface materials with great conformability, high thermal performance. Various kinds of thermal interface materials are available and they can be customized with different thickness, hardness, thermal conductivity.
|
PRODUCT |
DESCRIPTION |
COLOR |
THICKNESS (mm) |
HARDNESS |
BREAKDOWN VOLTAGE (Kv/mm) |
VOLUME RESISTIVITY (Ω-cm) |
THERMAL CONDUCTIVITY (W/m-K) |
THERMAL RESISTANCE (°C-in.2/W) |
FLAME RATING (UL 94) |
|
TP-080 |
Silicone & Ceramic, thermally conductive pad |
Light gray |
0.5 – 20.0 |
(Shore 00) 18±5 / 35±5 / 40 - 45 |
≥4.0 |
1.7X1016 |
0.8 |
1.471 |
V-0 |
|
TP-080R |
Silicone & Ceramic, thermally conductive pad |
Light red |
0.5 – 20.0 |
(Shore 00) 18±5 / 35±5 |
≥4.0 |
1.7X1016 |
0.8 |
1.456 |
V-0 |
|
UTP-100 |
Silicone & Fiberglass, thermally conductive pad |
White + Reddish brown |
0.5 – 10.0 |
(Shore C) 10 - 30 |
≥10.0 |
6.2X1015 |
1.0 |
1.907 |
V-0 |
|
UTP-200 |
Silicone & Fiberglass, thermally conductive pad |
Gray + Reddish brown |
0.7 – 6.5 |
(Shore C) 35 |
≥10.0 |
8.5X1013 |
2.0 |
1.012 |
V-0 |
|
TP-120 |
Silicone & Ceramic, thermally conductive pad |
Pink |
0.5 - 10 |
(Shore C) 10-50 |
≥6.0 |
3.5X1012 |
1.2 |
1.118 |
V-0 |
|
TP-120R |
Silicone & Ceramic, thermally conductive pad |
Light yellow |
0.3 -12.0 |
(Shore A) 10- 40 |
≥12.0 |
1.0X1016 |
1.2 |
1.47 |
V-0 |
|
TP-120FG |
Silicone & Fiberglass, thermally conductive pad |
Pink |
0.25 -1.0 |
(Shore C) 35 |
≥4.0 |
1.7X1016 |
1.2 |
1.495 |
V-0 |
|
TP-150 |
Silicone & Ceramic, thermally conductive pad |
Dark gray |
5.0 – 12.0 |
(Shore C) 25±5 / 35±5 / 55±5 |
≥6.0 |
8X1015 |
1.5 |
1.051 / 0.803 / 0.892 |
V-0 |
|
TP-150FG-S |
Silicone & Fiberglass, thermally conductive pad |
Light gray |
0.25 – 6.0 |
(Shore C) 35±5 / 55±5 |
≥6.0 |
1013 |
1.5 |
0.676 |
V-0 |
|
TP-200 |
Silicone & Ceramic, thermally conductive pad |
Dark gray |
0.4 – 12.0 |
(Shore C) 18 - 55 |
≥6.0 |
1.1X1016 |
2.0 |
0.776 |
V-0 |
|
TP-200R |
Silicone & Ceramic, thermally conductive pad |
Gray |
0.3 -12 |
(Shore A) 10 - 50 |
≥6.0 |
>1013 |
2.0 |
0.600 |
V-0 |
|
TP-200FG |
Silicone & Fiberglass, thermally conductive pad |
Gray |
0.25 - 12 |
(Shore C) 35±5 / 45±5 |
≥6.0 |
1.7X1013 |
2.0 |
0.758 |
V-0 |
|
TP-250 |
Silicone & Ceramic, thermally conductive pad |
Bright yellow |
0.5 -5.0 |
(Shore C) 25±5 / 35±5 / 55±5 |
≥5.0 |
3.2X1016 |
2.5 |
0.37 |
V-0 |
|
TP-400 |
Silicone & Ceramic, thermally conductive pad |
Purple |
0.3 – 10.0 |
(Shore 00) 50±5 / 65±5 / 75±5 |
>6.0 |
1010 |
4.0 |
0.38 |
V-0 |
 |
Contact Us for Samples!
E-Mail to: sales@thermpro-tech.com
|
